Redirects API

This document aims at providing the user a deep dive into Redirect APIs to perform the following tasks. Please read Redirect Overview And Best Practices before accessing these APIs.

Add a redirect rule
Bulk upload multiple rules
Edit an existing redirect rule
Delete a redirect rule
Activate the version
Download an activated version as well as previously activated version

Prerequisites

Working knowledge of HTTP and REST
Working knowledge for creating JSON payload/file
You need the {site_id}
Use cloudlet_type as redirector in the endpoint api.[orgId]

https://api.[orgId].arcpublishing.com/delivery-api/v1/cloudlet/redirector/site/{org-site-env}/rule?

Accessing the Redirect APIs

If you don’t already have an All Access Arc XP developer token, navigate to Administration → Developer Center → Create Tokens and click Create All Access Token. You will be presented with a unique token for you to use as the Bearer token when accessing Edge Redirector APIs (details on how to implement will be provided when creating the token).

Refer to Accessing the Arc XP APIs for more information.

Swagger Document for APIs

See Arc XP Delivery API.

Using the API Endpoints

The following sections walk you through various operations you can perform via these APIs

Viewing the rules under the activated version or current working set

To view the rules:

Command to execute

curl -H "Authorization: Bearer " \
-X GET "https://api.[orgId].arcpublishing.com/delivery-api/v1/cloudlet/redirector/site/{org-site-env}/rule?limit={}"

Response

{
  "rules": [
      {
      "id": "d779d7a9-262f-4ad2-9df2-0db7b9bee85f",
      "status": "NEW",
      "siteId": "staging-qatesting-sandbox",
      "policyType": "redirector",
      "sort_key": 16425880019999900,
      "submittedBy": "ktran",
      "submittedAt": "1642588001",
      "ruleContent": {
        "end": 0,
        "matches":
        [
          {
            "caseSensitive": false,
            "matchOperator": "equals",
            "matchType": "regex",
            "matchValue": "^https?://(?:[A-z0-9|\\.]*)/(.*)",
            "negate": false
            }
        ],
        "name": "d779d7a9-262f-4ad2-9df2-0db7b9bee85f",
        "redirectURL": "http://abc.com",
        "start": 0,
        "statusCode": 302,
        "type": "erMatchRule",
        "useIncomingQueryString": true,
        "useRelativeUrl": "none"
      },
      "warning": "Regex value could potentially match more paths than possibly expected"
    }
  ]
}

Adding a single rule

Command to execute

# Payload
{
  "redirectURL": "http://test.com",
  "useRelativeUrl": "none",
  "matches": [
    {
      "matchType": "regex",
      "matchValue": "^https?://(?:[A-z0-9|\\.]*)/(.*)",
      "matchOperator": "equals",
      "negate": false,
      "caseSensitive": false
    }
  ]
}

# Command
curl --request POST
    --header 'Authorization: Bearer '
    --url https://[orgId].arcpublishing.com/delivery-api/v1/cloudlet/redirector/site/{org-site-env}/rule

Response

HTTP 201 OK

Adding multiple rules

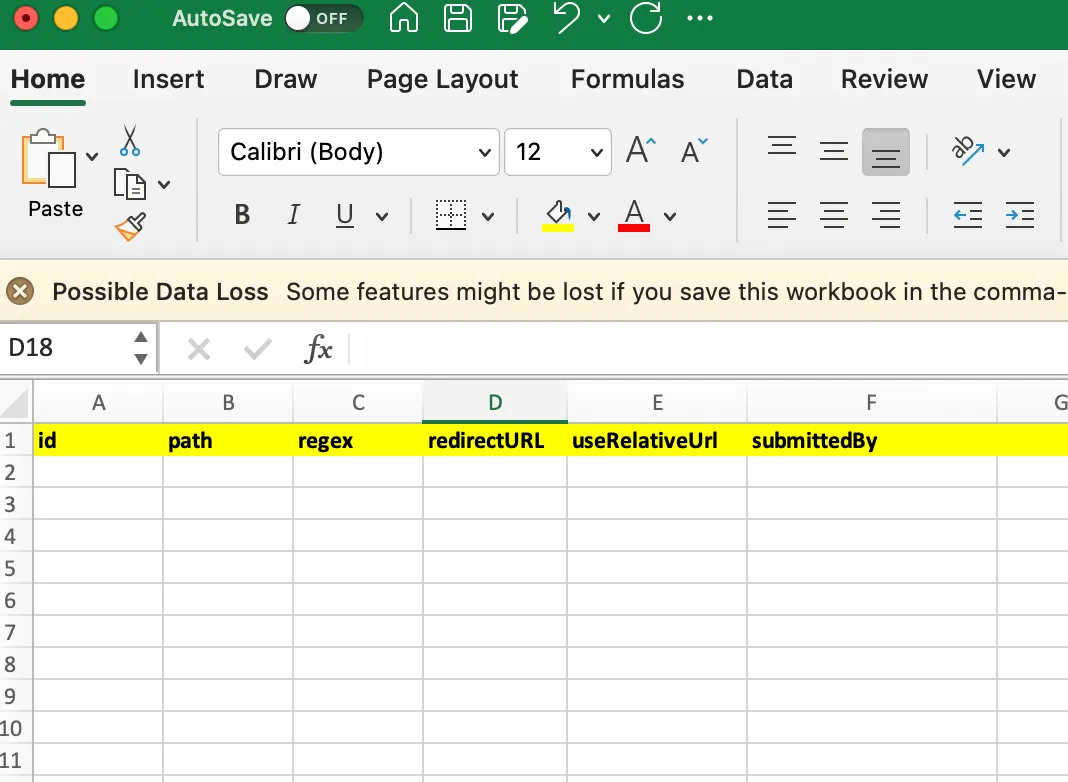

Details regarding payload CSV format

Command to execute

curl --request POST \
    --header "Authorization: Bearer " \
    --url https://api.[orgId].arcpublishing.com/delivery-api/v1/cloudlet/redirector/site/{org-site-env}/rule-csv \

Response

{
    "task_id": "fa03a4c6087940e485a6c03b6a4e9f76",
    "warning": ""
}

Updating an existing single rule

Command to execute

# Payload
    {
    "redirectURL": "http://testRulesUpdate.com",
    "useRelativeUrl": "none",
    "matches": [
        {
            "matchType": "path",
            "matchValue": "/products/wildcards/*.jpg",
            "matchOperator": "contains",
            "negate": false,
            "caseSensitive": false
        },
        {
            "matchType": "path",
            "matchValue": "/products/literals/*.jpg",
            "matchOperator": "equals",
            "negate": false,
            "caseSensitive": false
        },
        {
            "caseSensitive": false,
            "matchOperator": "equals",
            "matchType": "regex",
            "matchValue": "something.*",
            "negate": false
        }
    ]
}
# Command
curl --request PUT
    --header "Authorization: Bearer "
    --url https://api.[orgId].arcpublishing.com/delivery-api/v1/cloudlet/redirector/site/{org-site-env}/rule/

Response

HTTP Response 200 OK

Modifying multiple rules

Command to execute

# Payload
CSV file to be attached

# Command
curl --location --request PUT 'https://dev-api-usea1.customer.origin.aws.arc.pub/delivery-api/v1/cloudlet/redirector/site/staging-qatesting-sandbox/rule-csv' \
--header 'arc-organization: staging' \
--header 'arc-environment: sandbox' \
--header 'arc-v2-username: ' \
--header 'arc-service: user' \
--form 'file=@""'

Response

202 successful response

Deleting a rule

Command to be executed

Get the rule_id
Delete the rule

Get the rule

curl --request GET \
    --header "Authorization: Bearer " \
    --url https://api.[orgId].arcpublishing.com/delivery-api/v1/cloudlet/redirector/site/{org-site-env}/rule/

Delete the rule

curl --request PUT \
    --header "Authorization: Bearer " \
    --url https://api.[orgId].arcpublishing.com/delivery-api/v1/cloudlet/redirector/site/{org-site-env}/rule/{rid}/

Response

HTTP Response 201
{
    "success": true
}

Activating the policy

Command to be executed

curl --location -g --request POST 'http://{{host}}/delivery-api/v1/cloudlet/redirector/site/staging-ktran1-sandbox/version/' \
--header 'arc-organization: staging' \
--header 'arc-environment: sandbox' \
--header 'arc-v2-username: ascac' \
--header 'arc-service: user'

Response

HTTP 200
{
    "task_id": "string",
    "warning": "string"
}

Unlocking the version

Use the command in case of the functionality is locked for quite some time because of activation or some other backend error

Command to be executed

curl --location --request POST 'https://dev-api-usea1.customer.origin.aws.arc.pub/delivery-api/v1/cloudlet/redirector/site/staging-qatesting-sandbox/unlock' \
--header 'arc-organization: ' \
--header 'arc-environment: ' \
--header 'arc-v2-username: ' \
--header 'arc-service: user

Response

HTTP Response 200 OK
