Arc XP CLI: PageBuilder Engine Logs Package

Note

To get the Arc XP CLI running locally, follow this guide, then continue here for PageBuilder-specific instructions.

The PageBuilder package pulls Engine logs for a specific request ID. It’s a lightweight, self-service tool built to help you troubleshoot your pages efficiently. The documentation below covers this option.

For deeper analysis—like dashboards, alerts, and full log visibility across environments—you can forward logs to your own AWS instance. See the PageBuilder Engine log forwarding guide for details.

Access Controls

A read-only access token for each environment where you want to view logs is required. You can obtain tokens from Developer Center as described here.

Viewing Logs

Once you have installed the CLI and set up your environment access controls, you can view the PageBuilder Engine logs using the command line. The command will prompt you to enter a request ID, which you can find in your browser console.

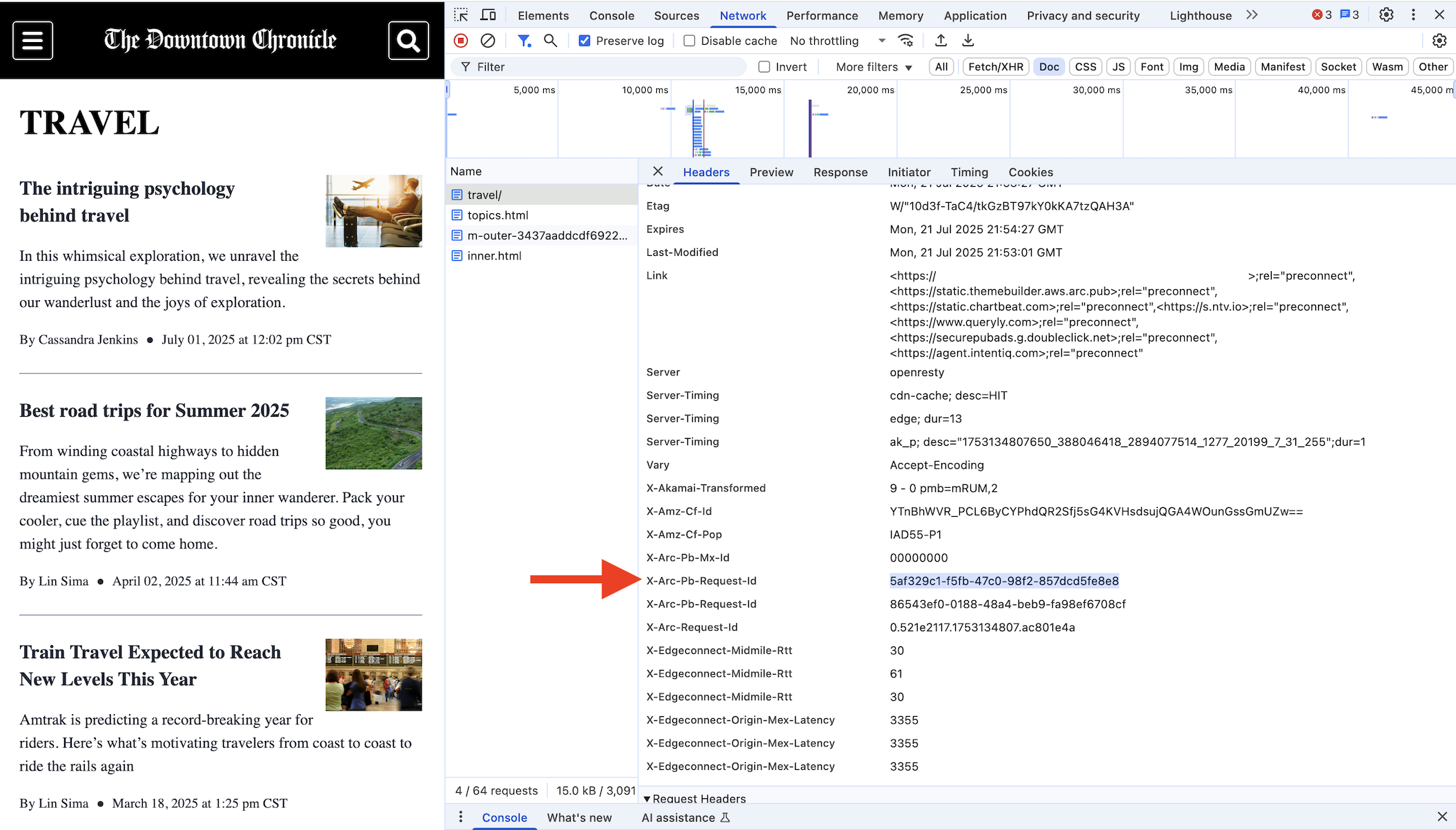

1. Copy request ID from browser console

On a page where you are experiencing issues:

1. Open your browser’s developer tools (F12 / fn + F12 or right-clicking and selecting “Inspect”).
2. Navigate to the “Network” tab, find the header name for the page with the issue.
3. Copy the first X-Arc-pb-request-id from the “Headers” details.

Note

Only the first X-Arc-pb-request-id from the “Response Headers” list will return Engine logs.

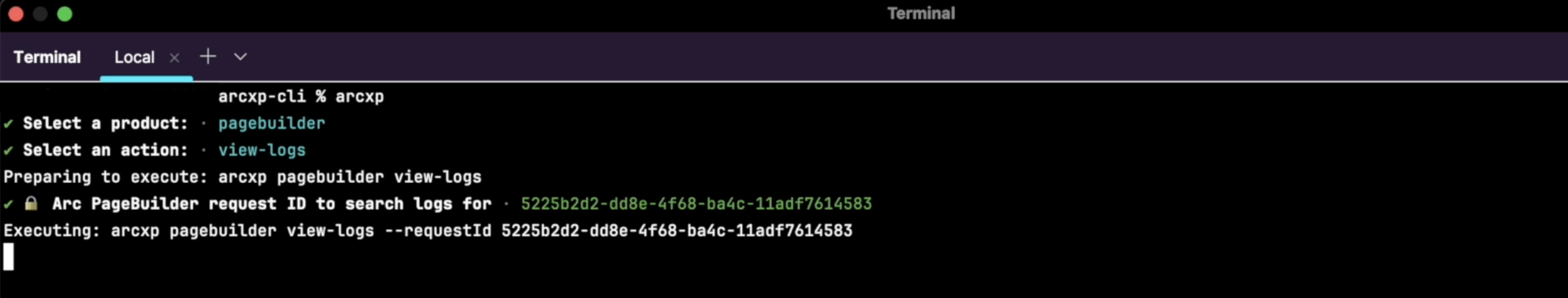

2. Run command with request ID

In your terminal:

1. Select pagebuilder from the product list.
2. Select view-logs as the action.
3. Paste the copied request ID when prompted.

Note

Logs should be requested within 15 minutes of the request ID being generated. If you are unable to retrieve logs, refresh your browser and copy the latest ID.

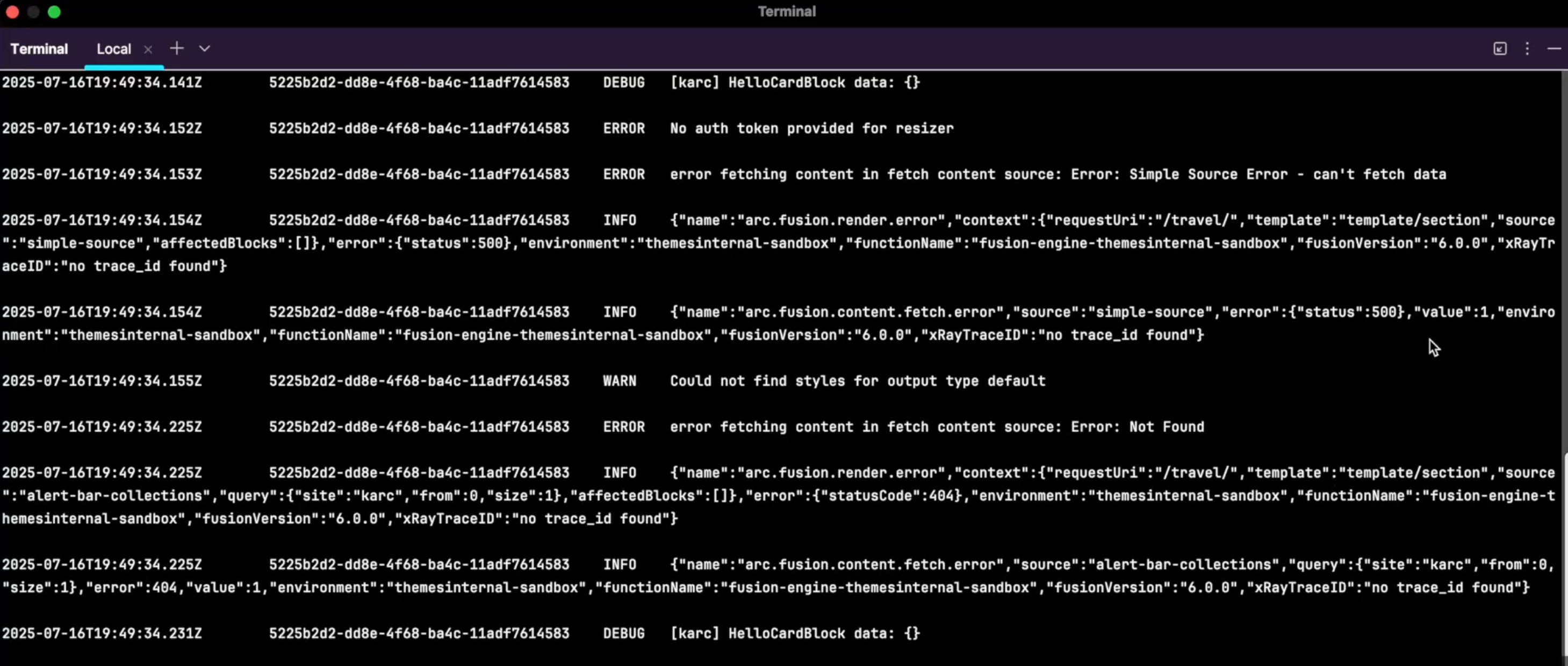

3. View logs

All logs for the provided request ID will be displayed in your terminal. See How to Read Engine Logs for more information on interpreting the logs.

Tip

As a best practice, you can implement your own error logging in your custom blocks code for easier troubleshooting.

Rate Limits

Throttling is applied to the log retrieval API call: /pagebuilder/api/v1/logsearch

• The log retrieval call is limited to 40 requests per minute.

CLI Error Reference

Below are common errors you may encounter when using the CLI to retrieve PageBuilder Engine logs, along with their causes and fixes.

API Error (400): Bad Request

If you encounter an API error with a 400 status code:

Cause	Fix
Request is missing the required parameters	Ensure you have provided a valid request ID

Note

White space is automatically trimmed from the request ID in the CLI.

No logs found for request_id: {request_id}

If you see this message, no logs were found for the provided request ID. This could be because:

Cause	Fix
Stale request ID that is outside of the 15 minute window for log retrieval	Refresh your browser and copy the latest request ID
15 minute TTL (time to live) cache on the article page after a fresh deploy	Append a token to the URL to bypass the cache, and copy the latest request ID

Security Warning: permissions set to 644

Cause	Fix
Expected permissions are not configured on the .env file in your directory	Run chmod 400 and ensure a read only token is set in the correct environment

Watch the Demo

Play

Arc XP CLI: Troubleshooting Webpage Errors with PageBuilder Engine Logs
